Description

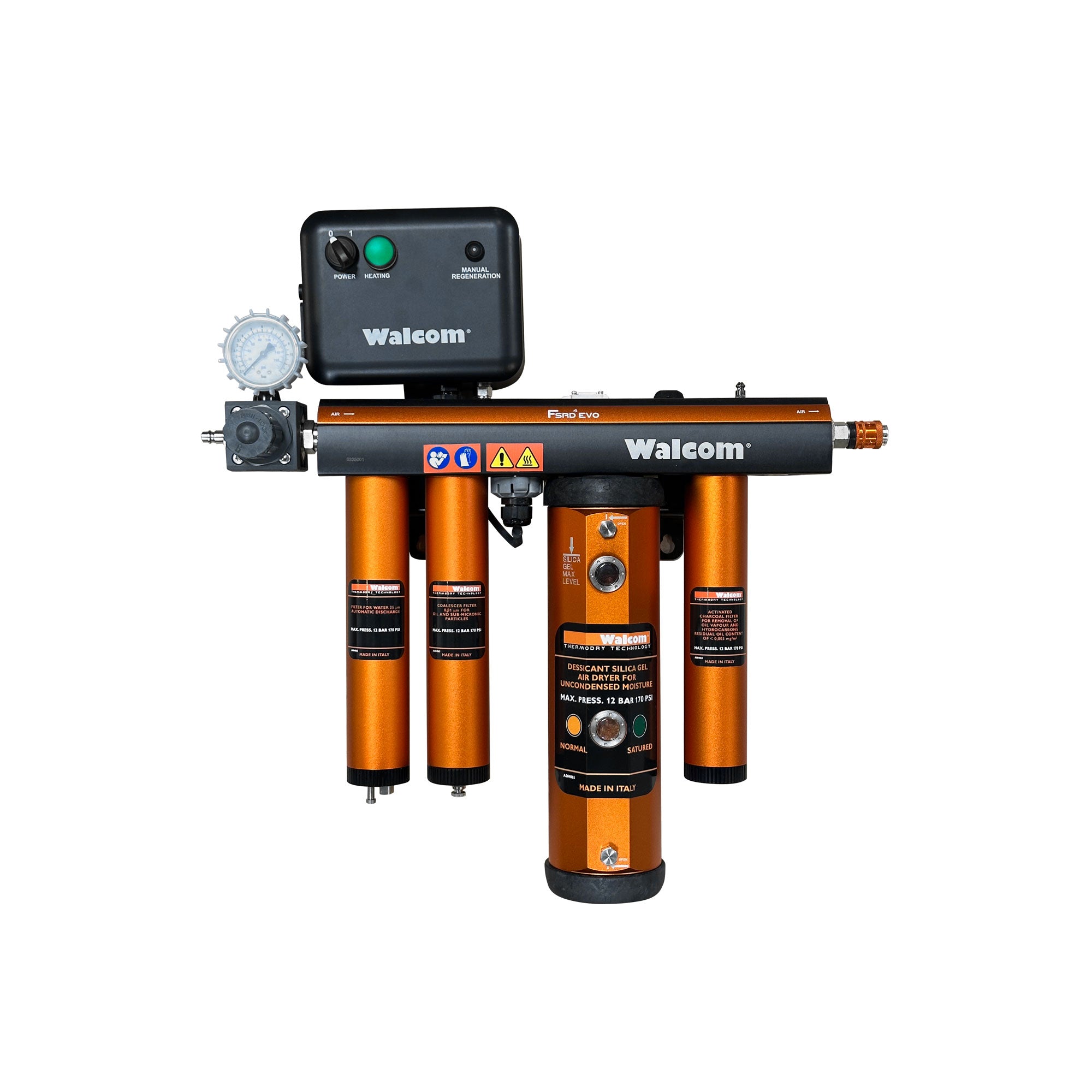

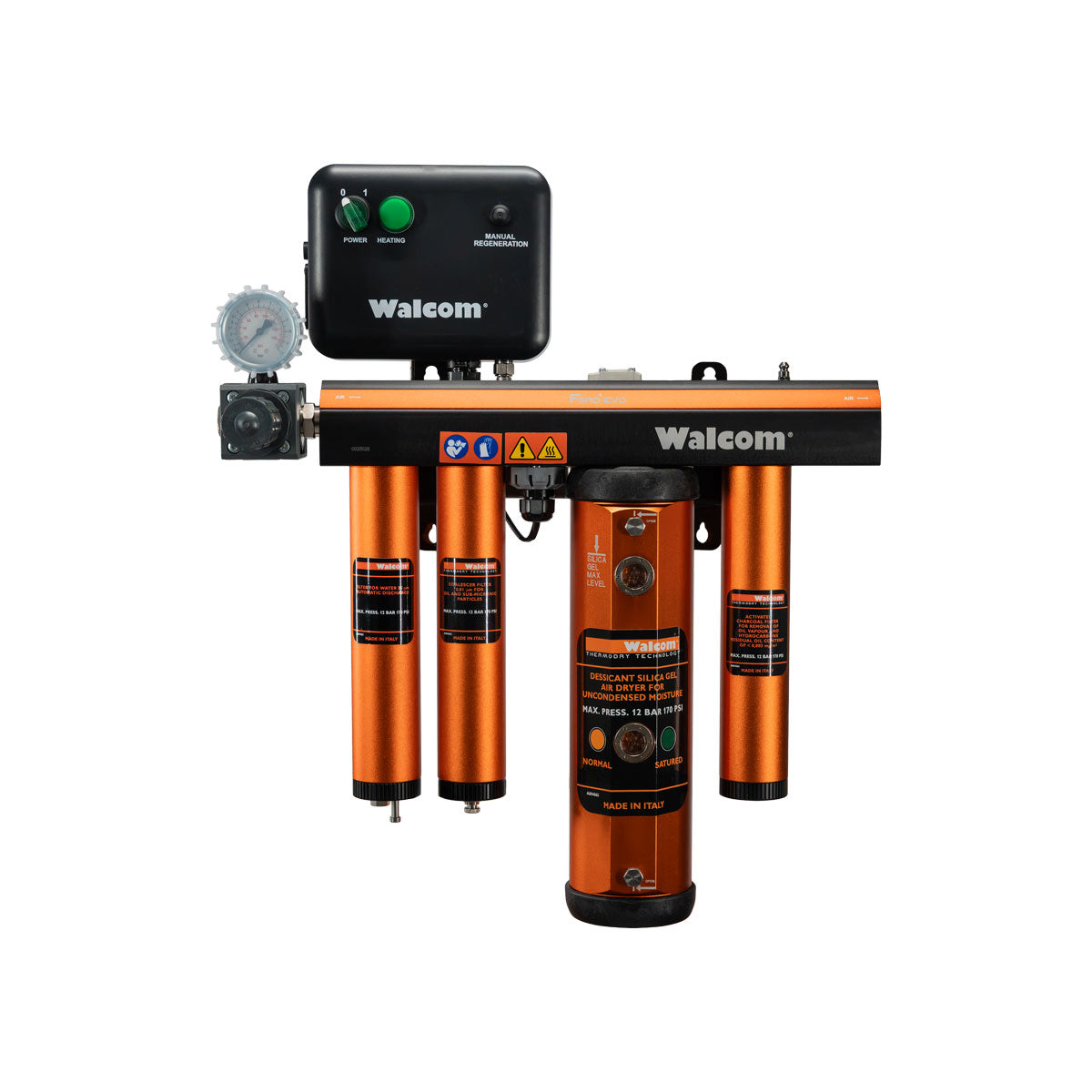

xA modular filter system ideal for use in the spray booth.
Composition:
- Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
- Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
- Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.
- Active carbon filter to eliminate all impurities and obtain breathable air.
Technical data
x| 1) Pre-filtering | element in sythentic fibre for the elimination of condensation. Automatic discharge |
| 2) Oil-separating filter | for the elimination of residual pollutants. Manual drainage tap |
| 3) Silica dryer group | to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights. |
| 4) Active carbon filter | to eliminate all impurities and obtain breathable air. Max residue < 0.0003 mg/m3. |
| Central body | anodized aluminum |
| Air inlet | F 3/4”; air outlet: n° 2 from M 1/4” |
| Filtering power | water filter 25 μm - oil 0.01 μm - carbons <0.0003 mg/m3 |
| Operating air pressure | 12 bar / 174 psi |
| Air consumption | 1200 l/min to 6 bar / 42 cfm at 87 psi |
| Weight | 12.9 Kg |
| Non-ATEX product, to be mounted outside the paint booth |
