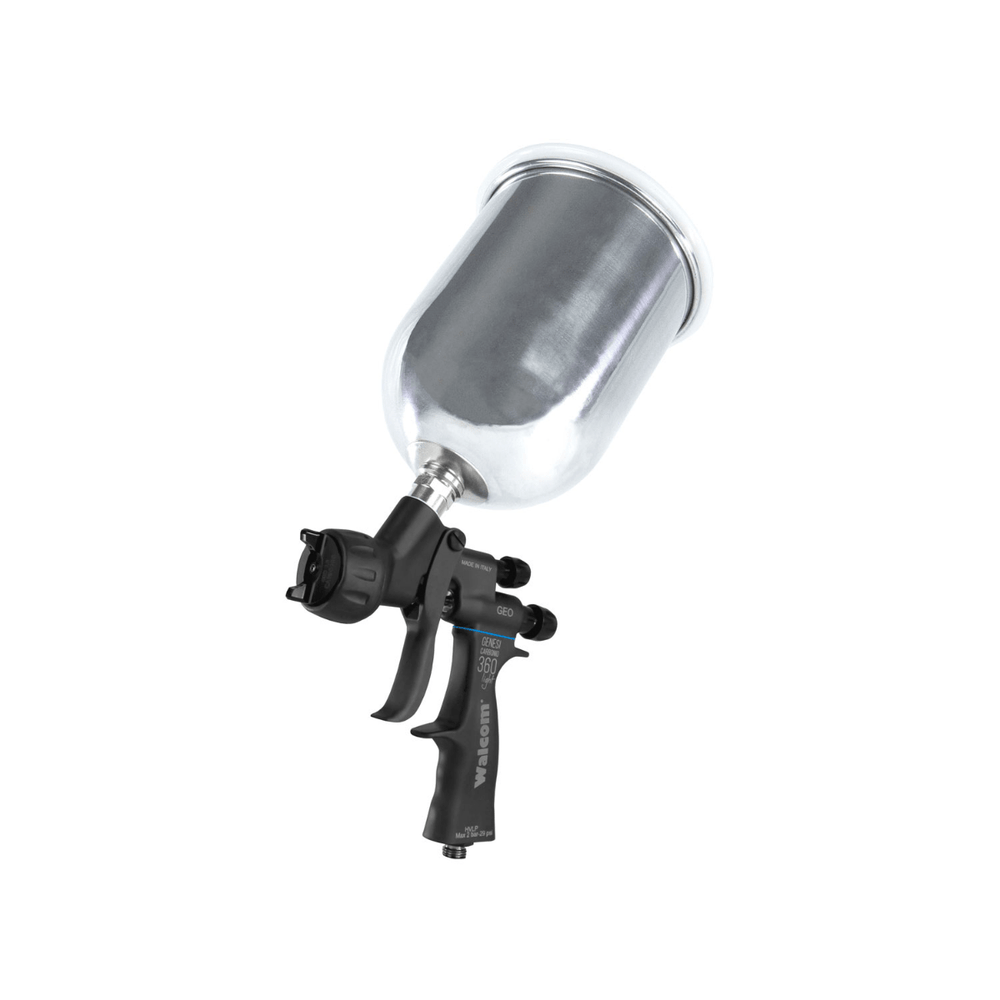

Genesi Carbionio 360 evo GEO

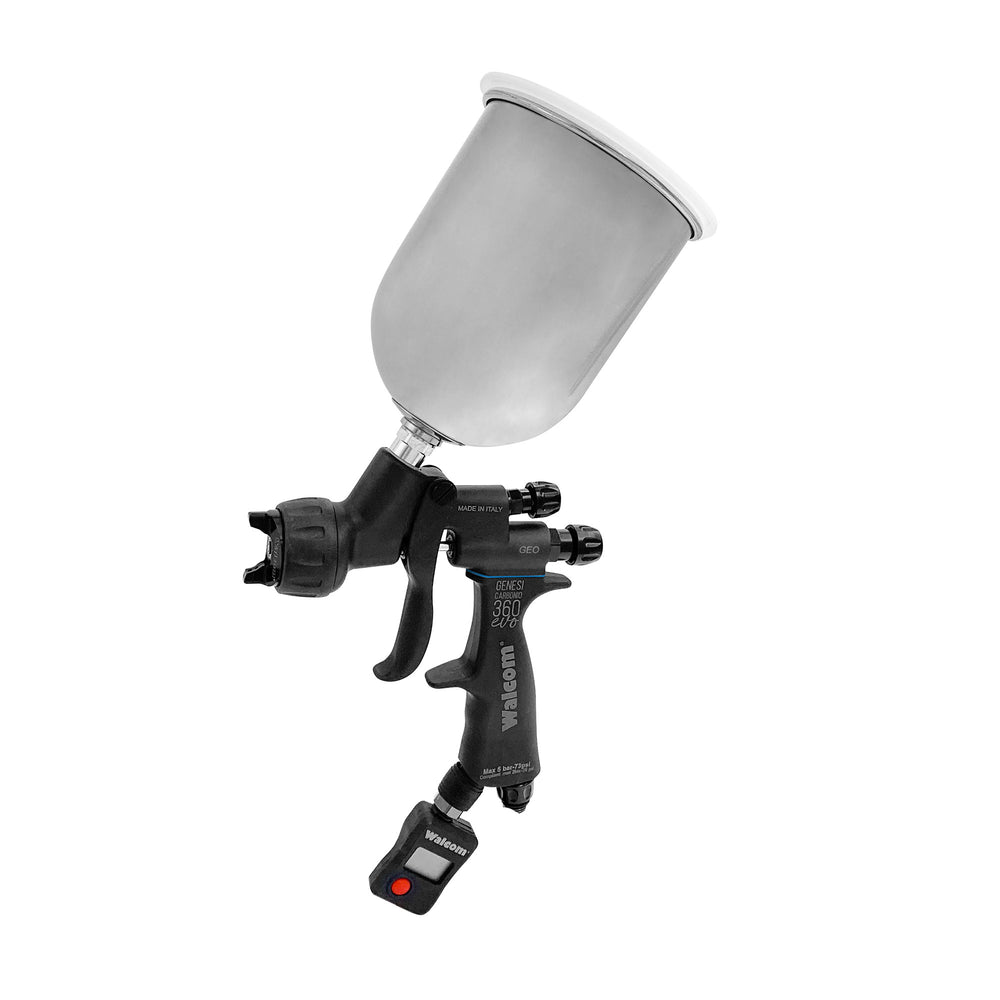

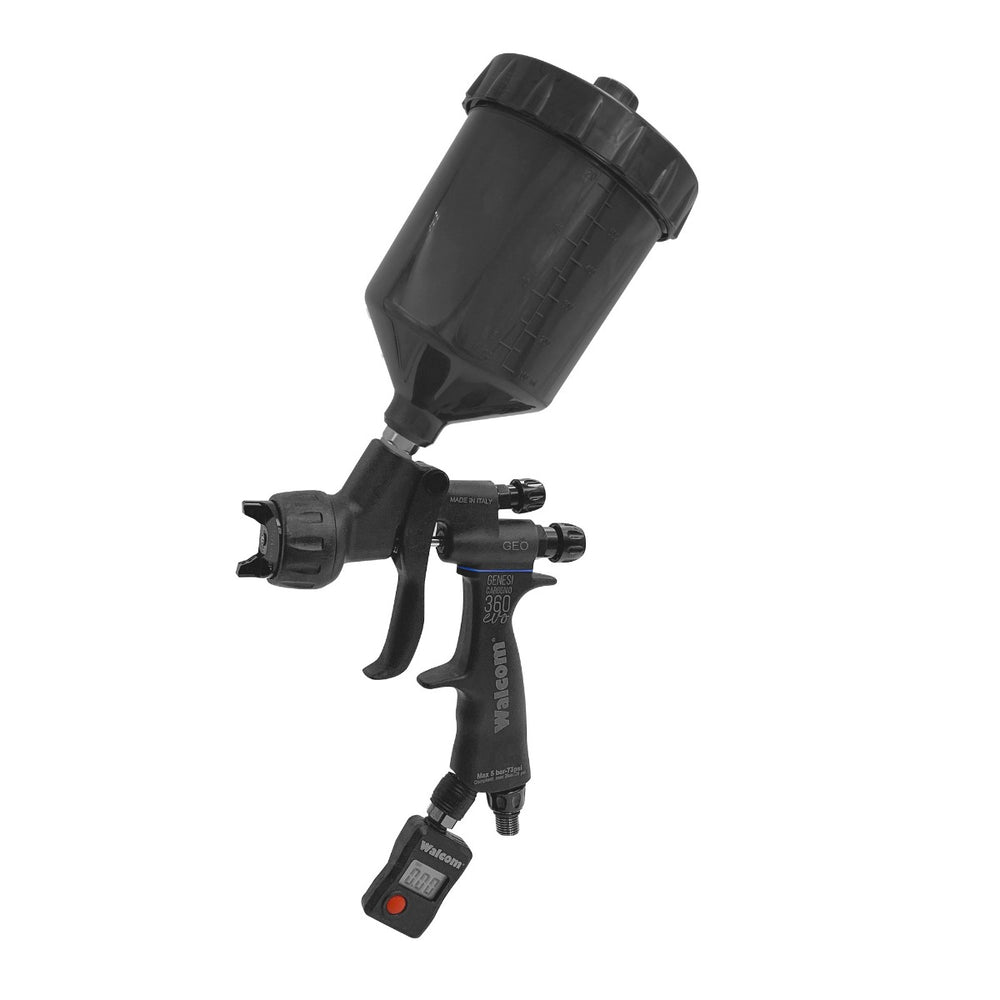

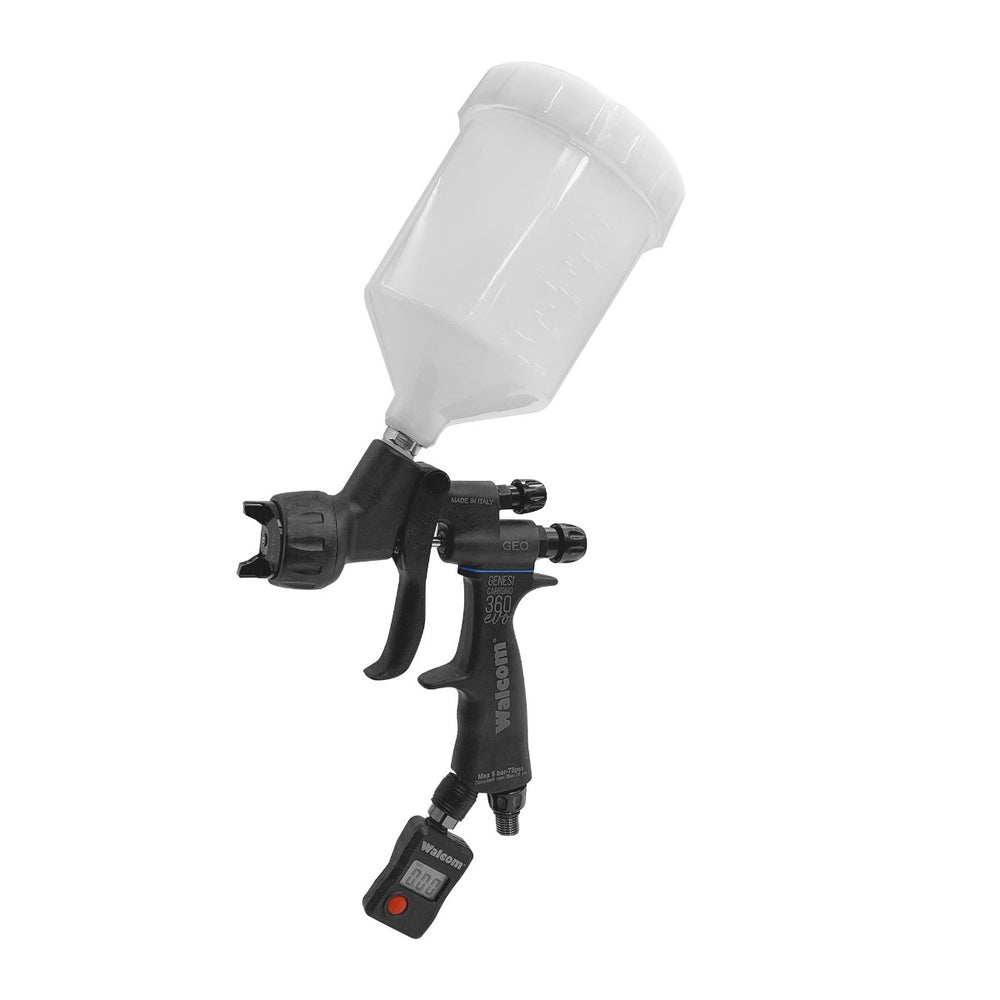

xIt features an integrated air regulator on the air inlet and a digital pressure gauge built directly into the gun body. Quick connect/release digital gauge. Engineered for perfect base coat atomization and color accuracy, it delivers a flawless finish with maximum comfort and control. Resistant to solvent and pickling chemicals

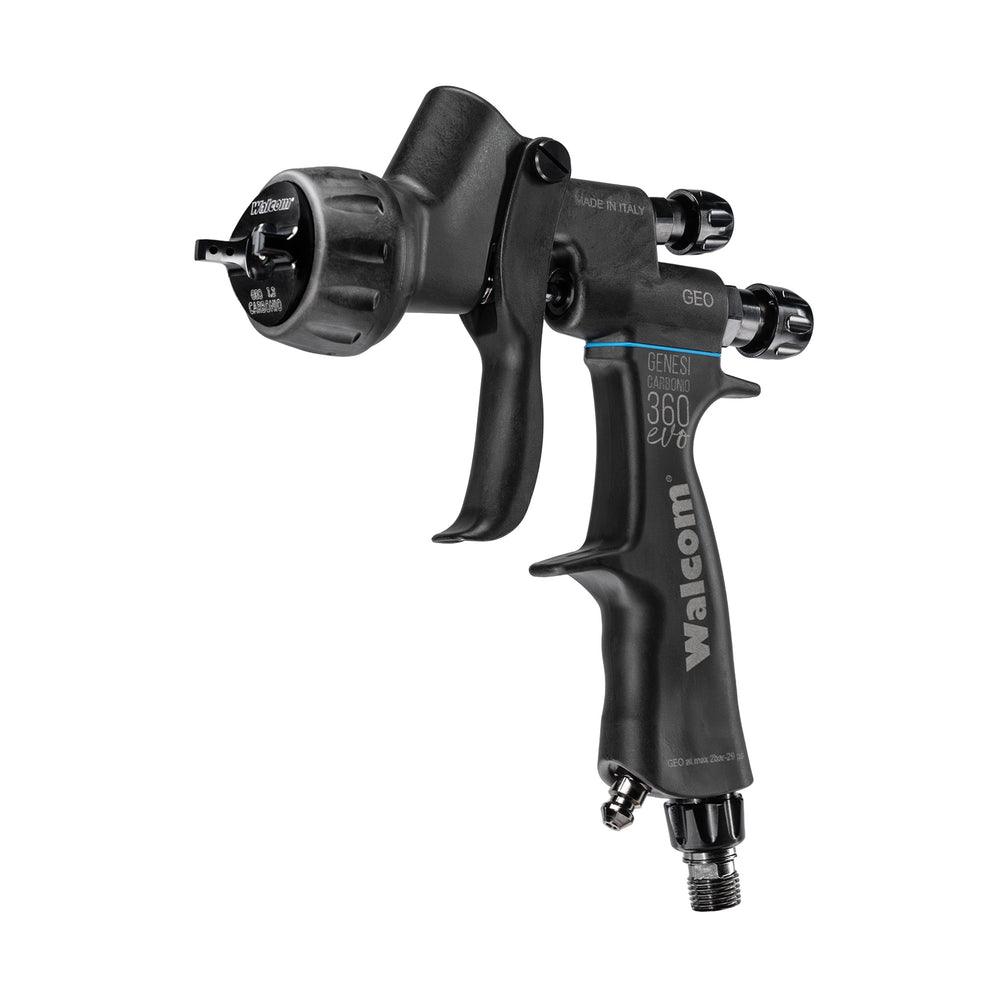

Only 340gr weight. Forged aluminum spray gun body over-injected with carbon fiber allows creating a super light and ergonomic spray gun, easy to clean with the nano metric coating, while maintaining the mechanical features of the metal.
Another technical performance is the the metal-to-metal connection without gasket for the aircap connection allowed by the the 5 axis machining technology construction process.
GEO BRAND
The dual atomizing nozzle, 6 pre-atomizing holes, excellent product lay out, unique system that delivers great performance.
Technical data
x| Body | forged aluminum and carbon fiber |
| Handle and trigger | carbon fiber |
| Air cap | anodized aluminum |
| Air cap ring | carbon fiber |
| Nozzle | stainless steel AISI 303 |
| Needle-springs | stainless steel AISI 303 |
| Seal gaskets | self-lubricating PTFE (teflon) |
| Weight | 340 g |
| Operating air pressure | range 0.5 - 2.5 bar (7.2 - 36 psi) / HVLP max 2 bar (29 psi) |
| Air consumption | 425 l/min at 2 bar / 15 cfm at 29 psi |
| Ø nozzle | 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9 |
Maintenance
xSuitable fields of application
